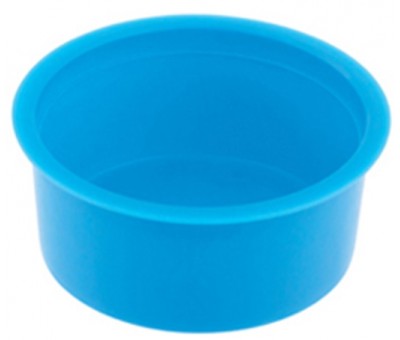

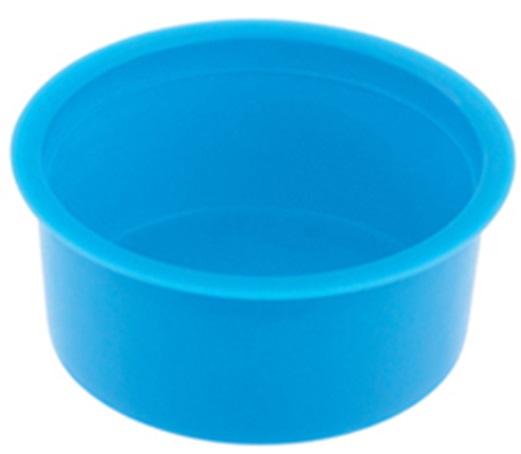

S'utilise comme cape et bouchon conique - bleu SR 1111 en polyéthylène basse densité bleu. Ce bouchon conique est facile à mettre en place et à enlever. Il représente une très bonne protection contre les chocs, la poussière et l'humidité, ainsi que la corrosion.
Caractéristiques
| Part No. | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | D (mm) | h (mm) | Couleur |
| 1 | 2.9 | 4.6 | 3.0 | 1.3 | 7.9 | 10.3 | Bleu |
| 10 | 9.9 | 11.7 | 10.1 | 8.3 | 15.9 | 9.5 | Bleu |
| 101 | 138.9 | 142.8 | 140.7 | 136.9 | 155.7 | 25.4 | Bleu |
| 103 | 143.3 | 149.2 | 147.2 | 140.7 | 158.8 | 25.4 | Bleu |
| 104 | 152.7 | 157.0 | 154.9 | 150.4 | 168.2 | 25.4 | Bleu |
| 106 | 162.6 | 166.6 | 164.6 | 160.8 | 176.3 | 22.9 | Bleu |
| 108 | 167.9 | 170.4 | 168.4 | 165.9 | 182.6 | 38.9 | Bleu |
| 11 | 10.7 | 12.3 | 10.7 | 9.0 | 15.1 | 9.5 | Bleu |
| 110 | 179.1 | 180.9 | 178.8 | 177.0 | 193.8 | 26.2 | Bleu |
| 1100 | 124.7 | 129.3 | 127.3 | 122.7 | 139.7 | 26.2 | Bleu |
| 1110 | 126.8 | 132.1 | 129.5 | 125.0 | 143.0 | 26.2 | Bleu |
| 112 | 186.4 | 194.3 | 192.0 | 184.4 | 201.7 | 26.2 | Bleu |
| 114 | 194.6 | 199.1 | 197.1 | 192.5 | 206.3 | 26.2 | Bleu |
| 118 | 207.2 | 212.1 | 209.6 | 204.5 | 222.3 | 35.7 | Bleu |
| 12 | 11.4 | 13.0 | 11.4 | 9.8 | 15.9 | 10.3 | Bleu |
| 120 | 213.4 | 218.4 | 215.9 | 210.8 | 228.6 | 35.7 | Bleu |
| 124 | 220.2 | 221.7 | 219.1 | 217.2 | 231.9 | 38.9 | Bleu |
| 126 | 230.1 | 237.7 | 234.7 | 225.8 | 250.4 | 45.2 | Bleu |
| 13 | 12.5 | 13.9 | 12.3 | 10.4 | 18.3 | 12.7 | Bleu |
| 13-SP | 12.1 | 13.8 | 12.2 | 10.4 | 18.3 | 7.9 | Bleu |
| 13-W | 12.1 | 13.9 | 12.3 | 10.4 | 22.2 | 12.7 | Bleu |
| 130 | 274.1 | 281.9 | 277.1 | 268.0 | 294.6 | 45.2 | Bleu |
| 132 | 282.2 | 291.1 | 286.3 | 273.8 | 303.8 | 51.6 | Bleu |
| 133 | 303.0 | 319.0 | 313.7 | 297.2 | 331.5 | 51.6 | Bleu |
| 134 | 324.9 | 338.8 | 328 | 318.3 | 346.5 | 51.6 | Bleu |
| 136 | 336.6 | 345.4 | 340.4 | 330.2 | 358.1 | 51.6 | Bleu |
| 14 | 12.7 | 14.4 | 12.8 | 11.1 | 19.1 | 11.1 | Bleu |
| 16 | 13.5 | 15.8 | 14.1 | 11.9 | 19.1 | 11.8 | Bleu |
| 17 | 14.0 | 16.1 | 14.4 | 12.3 | 19.8 | 12.7 | Bleu |
| 18 | 15.0 | 17.2 | 15.4 | 13.2 | 22.2 | 13.5 | Bleu |
| 1S | 3.5 | 4.6 | 3.0 | 1.3 | 7.9 | 6.4 | Bleu |
| 2 | 4.5 | 6.1 | 4.5 | 2.8 | 9.5 | 9.5 | Bleu |
| 20 | 15.5 | 17.7 | 16.1 | 13.9 | 21.4 | 12.7 | Bleu |
| 21 | 16.3 | 18.5 | 16.9 | 14.6 | 22.2 | 12.7 | Bleu |
| 22 | 17.2 | 19.2 | 17.5 | 15.6 | 22.2 | 15.9 | Bleu |
| 23 | 17.5 | 19.9 | 18.4 | 15.9 | 23.8 | 15.9 | Bleu |
| 26 | 18.4 | 21.0 | 19.3 | 16.8 | 25.4 | 12.7 | Bleu |
| 26-L | 18.4 | 21.0 | 19.3 | 16.8 | 24.6 | 15.0 | Bleu |
| 27 | 19.1 | 21.5 | 19.7 | 17.4 | 26.2 | 15.9 | Bleu |
| 28 | 20.4 | 23.1 | 21.5 | 18.4 | 27.8 | 19.1 | Bleu |
| 29 | 20.8 | 23.7 | 21.6 | 19.2 | 28.6 | 14.6 | Bleu |
| 3 | 5.3 | 6.8 | 4.9 | 3.2 | 9.5 | 9.5 | Bleu |
| 30 | 21.7 | 24.7 | 23.0 | 19.5 | 28.6 | 19.1 | Bleu |
| 31 | 22.1 | 24.8 | 23.4 | 20.4 | 28.6 | 15.9 | Bleu |
| 35 | 22.7 | 26.4 | 24.8 | 21.1 | 29.4 | 19.1 | Bleu |
| 38 | 24.9 | 26.5 | 25.0 | 22.3 | 31.8 | 12.7 | Bleu |
| 39665 | 141.0 | 150.0 | 148.0 | 138.0 | 164.1 | 25.4 | Bleu |
| 40 | 24.5 | 27.7 | 26.0 | 22.9 | 31.8 | 19.1 | Bleu |
| 41 | 25.5 | 29.1 | 27.4 | 23.8 | 33.3 | 19.1 | Bleu |
| 42 | 28.2 | 31.2 | 30.0 | 26.4 | 38.5 | 19.1 | Bleu |
| 44 | 30.0 | 32.6 | 30.9 | 28.1 | 36.5 | 19.1 | Bleu |
| 45 | 31.1 | 34.3 | 32.9 | 29.5 | 38.1 | 19.1 | Bleu |
| 46 | 31.4 | 34.3 | 32.9 | 29.0 | 36.5 | 19.1 | Bleu |
| 47 | 32.8 | 34.6 | 33.02 | 31.2 | 38.1 | 19.1 | Bleu |
| 48 | 32.8 | 37.0 | 35.3 | 31.2 | 41.3 | 25.4 | Bleu |
| 49 | 33.3 | 37.3 | 35.6 | 31.7 | 41.3 | 19.1 | Bleu |
| 5 | 6.1 | 7.7 | 6.1 | 4.5 | 11.9 | 9.5 | Bleu |
| 51 | 34.1 | 38.5 | 36.8 | 32.6 | 44.5 | 23.8 | Bleu |
| 53 | 36.8 | 40.6 | 39.0 | 35.2 | 44.5 | 19.1 | Bleu |
| 54 | 38.6 | 40.7 | 39.0 | 37.0 | 45.2 | 19.1 | Bleu |
| 55 | 39.6 | 42.5 | 41.2 | 38.0 | 47.6 | 19.1 | Bleu |
| 56 | 40.8 | 44.5 | 42.8 | 39.8 | 49.2 | 19.1 | Bleu |
| 57 | 44.1 | 47.5 | 46.2 | 42.6 | 51.6 | 19.1 | Bleu |
| 58 | 45.9 | 49.7 | 48.1 | 44.3 | 54.0 | 25.4 | Bleu |
| 59 | 45.7 | 46.4 | 44.7 | 44.1 | 51.6 | 12.7 | Bleu |
| 6 | 6.7 | 8.5 | 7.0 | 5.2 | 11.9 | 9.5 | Bleu |
| 60 | 46.9 | 51.3 | 49.2 | 45.3 | 54.0 | 25.4 | Bleu |
| 62 | 48.3 | 53.0 | 51.2 | 46.7 | 57.2 | 25.4 | Bleu |
| 63 | 50.3 | 55.1 | 53.6 | 48.6 | 57.2 | 25.4 | Bleu |
| 65 | 51.2 | 54.5 | 52.9 | 49.7 | 58.7 | 19.1 | Bleu |
| 66 | 52.4 | 57.2 | 55.3 | 50.8 | 61.9 | 26.2 | Bleu |
| 67 | 54.8 | 59.8 | 58.1 | 52.9 | 66.7 | 25.4 | Bleu |
| 68 | 56.5 | 57.9 | 56.4 | 54.6 | 63.5 | 12.7 | Bleu |
| 7 | 7.6 | 9.3 | 7.7 | 5.9 | 13.5 | 9.5 | Bleu |
| 7-S | 8.4 | 9.3 | 7.7 | 6.8 | 12.7 | 5.6 | Bleu |
| 70 | 54.1 | 61.6 | 60.2 | 51.9 | 63.5 | 25.4 | Bleu |
| 71 | 58.4 | 63.1 | 61.0 | 56.8 | 66.7 | 25.4 | Bleu |
| 73 | 60.8 | 66.2 | 64.5 | 59.2 | 66.7 | 25.4 | Bleu |
| 74 | 61.7 | 67.2 | 65.5 | 61.5 | 69.9 | 19.1 | Bleu |
| 75 | 58.7 | 67.3 | 65.7 | 57.0 | 69.9 | 25.4 | Bleu |
| 76 | 62.4 | 69.9 | 68.2 | 60.8 | 73.0 | 25.4 | Bleu |
| 77 | 65.0 | 68.3 | 66.7 | 63.5 | 73.0 | 19.1 | Bleu |
| 78 | 67.2 | 71.3 | 69.2 | 65.5 | 76.2 | 12.7 | Bleu |
| 8 | 8.4 | 10.1 | 8.4 | 7.0 | 14.3 | 9.5 | Bleu |
| 81 | 69.1 | 76.2 | 74.9 | 66.7 | 79.4 | 25.4 | Bleu |
| 82 | 72.4 | 75.7 | 74.2 | 70.7 | 82.6 | 19.1 | Bleu |
| 83 | 76.1 | 80.2 | 78.7 | 74.0 | 85.7 | 12.7 | Bleu |
| 85 | 75.7 | 82.4 | 80.4 | 73.7 | 85.7 | 25.4 | Bleu |
| 86 | 78.5 | 85.5 | 83.4 | 76.3 | 88.9 | 25.4 | Bleu |
| 87 | 84.3 | 87.6 | 85.6 | 82.3 | 92.1 | 12.7 | Bleu |
| 88 | 82.2 | 90.8 | 88.8 | 80.2 | 100.0 | 25.4 | Bleu |
| 89 | 88.0 | 91.4 | 89.2 | 86.5 | 98.4 | 22.4 | Bleu |
| 9 | 9.1 | 10.9 | 9.3 | 7.6 | 15.1 | 9.5 | Bleu |
| 90 | 93.4 | 96.5 | 94.7 | 91.6 | 101.6 | 19.1 | Bleu |
| 91 | 96.5 | 99.7 | 97.7 | 94.4 | 104.8 | 17.5 | Bleu |
| 92 | 99.5 | 103.4 | 101.1 | 96.8 | 111.1 | 19.8 | Bleu |
| 93 | 102.4 | 106.4 | 104.4 | 100.3 | 114.3 | 19.1 | Bleu |
| 94 | 107.1 | 112.9 | 111.3 | 105.0 | 123.8 | 25.4 | Bleu |
| 95 | 110.9 | 117.0 | 114.3 | 109.0 | 127.0 | 25.4 | Bleu |
| FPL-6 | 152.0 | 153.4 | - | - | 167.9 | 32.5 | Noir |
| K-436 | 174.8 | 178.6 | 176.5 | 172.7 | 194.8 | 13.5 | Bleu |
| K-5 | 38.7 | 38.7 | 37.7 | 36.7 | 44.5 | 12.7 | Bleu |
| K-851 | 90.2 | 95.3 | 93.4 | 88.3 | 101.6 | 25.4 | Bleu |
