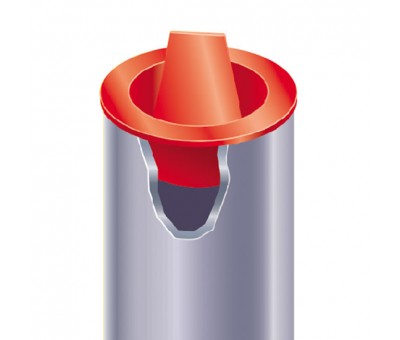

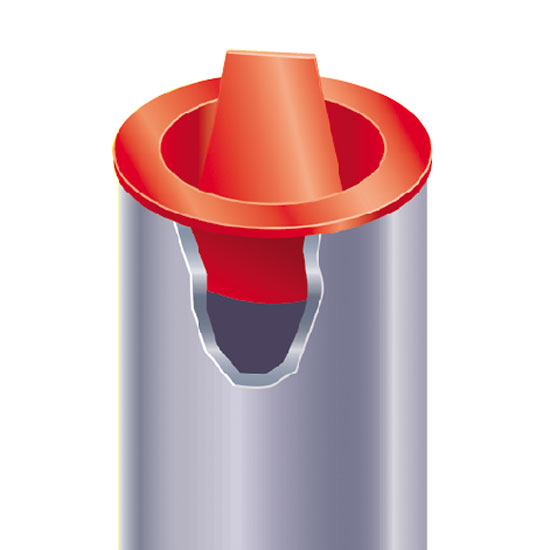

Bouchon plastique à languette centrale
Le bouchon à languette centrale SR 1068 est en plastique polyéthylène basse densité. Il représente une excellente protection contre la poussière, l'humidité et la corrosion pendant la production, le stockage et le transport.
La languette centrale facilite la pose et la dépose.
Caractéristiques
| Part No. | Filetage | Filetage | Filetage | d1 | d2 | D | h | H | Couleur |
| Métrique | UNF | BSP | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 10418 | - | 1” | - | 22.5 | 25.5 | 28.9 | 17.8 | 29.0 | Rouge |
| 110029 | M8 | 5⁄16" | - | 6.2 | 7.7 | 11.1 | 9.5 | 20.5 | Rouge |
| 110030 | M10 | 7⁄16" | 1⁄8" | 8.4 | 10.0 | 13.5 | 9.5 | 20.5 | Rouge |
| 110031 | - | 3⁄8" | - | 9.5 | 10.8 | 14.0 | 9.5 | 20.5 | Rouge |
| 110032 | M12 | 1⁄2" | 1⁄4" | 10.9 | 12.3 | 15.9 | 9.5 | 20.3 | Rouge |
| 110033 | M14 | 9⁄16" | - | 11.7 | 13.7 | 17.2 | 11.0 | 22.0 | Rouge |
| 110034 | M16 | 5⁄8" | 3⁄8" | 14.2 | 16.0 | 19.0 | 11.9 | 22.9 | Rouge |
| 110035 | M20 | 3⁄4" | - | 16.4 | 18.3 | 22.2 | 12.3 | 23.5 | Rouge |
| 110036 | - | 13⁄16" | 1⁄2" | 17.8 | 20.0 | 23.8 | 13.7 | 24.5 | Rouge |
| 110037 | M24 | 7⁄8" | 5⁄8" | 21.3 | 23.2 | 27.0 | 15.9 | 26.9 | Rouge |
| 110038 | M28, M30 | 11⁄8" | - | 24.7 | 27.7 | 32.0 | 19.0 | 30.0 | Rouge |
| 110039 | M52 | - | - | 48.2 | 52.7 | 57.1 | 25.4 | 26.4 | Rouge |
| 110040 | M58, M60 | - | 2” | 55.0 | 61.0 | 65.0 | 25.0 | 26.0 | Rouge |
| 110041 | M62 | - | - | 59.3 | 67.3 | 70.6 | 30.7 | 31.5 | Rouge |
| 110042 | - | - | - | 67.4 | 70.2 | 74.6 | 25.0 | 26.0 | Rouge |
| CP-10 | - | - | - | 10.2 | 11.8 | 15.9 | 9.5 | 19.1 | Orange |
| CP-12 | - | - | - | 11.4 | 13.0 | 16.7 | 10.3 | 14.3 | Orange |
| CP-14 | - | - | - | 12.7 | 14.4 | 18.3 | 11.9 | 20.6 | Orange |
| CP-18 | - | - | - | 14.7 | 17.0 | 20.6 | 13.5 | 19.1 | Orange |
| CP-19 | - | - | - | 15.5 | 17.7 | 21.3 | 13.5 | 19.8 | Orange |
| CP-24 | - * | - | - | 18.5 | 21.0 | 25.4 | 15.0 | 21.3 | Orange |
| CP-31 | - | - | - | 22.1 | 24.7 | 28.5 | 19.1 | 25.4 | Orange |
| CP-37 | - | - | - | 24.6 | 27.7 | 31.8 | 19.8 | 26.2 | Orange |
| CP-40 | - | - | - | 26.1 | 29.1 | 34.0 | 19.1 | 25.4 | Orange |
| CP-42 | - | - | - | 27.8 | 31.0 | 35.8 | 19.8 | 25.4 | Orange |
| CP-44 | - | - | - | 29.2 | 32.7 | 39.4 | 19.1 | 25.4 | Orange |
| CP-47 | - | - | - | 32.8 | 33.2 | 38.1 | 19.8 | 25.4 | Orange |
| CP-49 | - | - | - | 33.3 | 37.2 | 41.2 | 19.1 | 25.4 | Orange |
| CP-51 | - | - | - | 34.1 | 38.8 | 44.5 | 22.4 | 25.4 | Orange |
| CP-55 | - | - | - | 36.9 | 40.7 | 44.5 | 19.1 | 25.4 | Orange |
| CP-56 | - | - | - | 41.0 | 44.1 | 48.4 | 18.3 | 28.6 | Orange |
| CP-57 | - | - | - | 45.9 | 49.2 | 54.9 | 25.4 | 31.8 | Orange |
| CP-6 | - | - | - | 6.8 | 8.5 | 11.9 | 10.3 | 15.9 | Orange |
| CP-9 | - | - | - | 9.2 | 10.9 | 15.1 | 9.5 | 19.1 | Orange |
