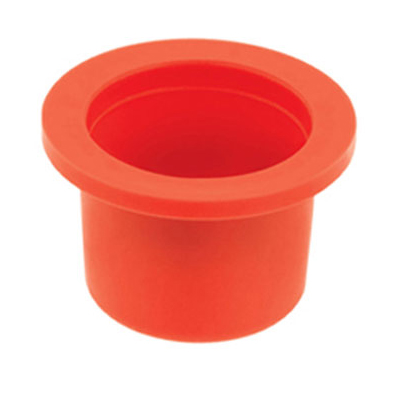

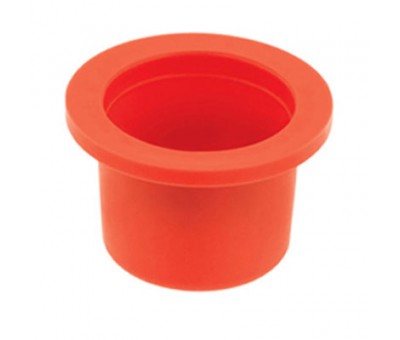

Cape Bouchon conique à collerette
Ce bouchon conique à collerette large s'utilise également comme cape plastique. La cape/bouchon SR 1001 est fabriquée en polyéthylène basse densité rouge.
Ce modèle vient compléter la gamme SR1000 des capes et bouchons. La grande collerette offre la meilleure protection et un démontage plus facile
Caractéristiques
| Part | d1 | d2 | d3 | d4 | D | h | Comme | Comme |
| No. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | cape | bouchon |
| 10420 | 11.3 | 13.2 | 11.6 | 9.8 | 29.0 | 11.0 | - | - |
| 110831 | 11.4 | 12.4 | 10.5 | 9.5 | 15.0 | 7.0 | - | - |
| 12134 | 22.5 | 25.3 | 23.5 | 20.8 | 55.4 | 17.3 | - | - |
| 12432 | 7.6 | 9.3 | 7.7 | 6.3 | 18.4 | 9.5 | - | - |
| 12433 | 10.7 | 12.3 | 10.7 | 9.1 | 22.0 | 9.5 | 1⁄8" BSP | 1⁄4" BSP, 1⁄2" UNF |
| 12434 | 13.5 | 15.5 | 13.2 | 11.4 | 30.0 | 9.5 | - | - |
| 12435 | 17.5 | 20.0 | 18.5 | 16.1 | 34.9 | 14.3 | M18 | 1⁄2" BSP |
| 12436 | 21.9 | 25.0 | 22.0 | 18.9 | 48.0 | 17.5 | - | - |
| 12437 | 30.4 | 33.6 | 30.7 | 27.8 | 47.3 | 15.2 | M30 | M33, M32, 1" BSP |
| 12438 | 33.3 | 37.2 | 35.6 | 32.0 | 50.8 | 22.2 | M35, 1" BSP | M36, M38, 11⁄8" BSP 11⁄2" UNF |
| 12439 | 36.9 | 40.6 | 39.0 | 35.0 | 54.2 | 22.5 | M38, 11⁄8" BSP | M39, M40, 11⁄4" BSP |
| 12441 | 47.2 | 51.9 | 48.7 | 44.5 | 72.0 | 24.0 | - | - |
| 18349 | 13.6 | 15.4 | 13.8 | 12.2 | 22.2 | 11.1 | 1⁄4" BSP, 1⁄2" UNF | M16, 5⁄8" UNF |
| 18351 | 14.7 | 16.9 | 15.4 | 13.2 | 25.4 | 12.7 | - | M18 |
| 18356 | 19.1 | 21.5 | 19.9 | 17.6 | 38.1 | 14.3 | - | - |
| 18357 | 24.7 | 27.7 | 26.1 | 23.2 | 38.1 | 19.1 | - | M27, M30 |
| 18360 | 31.1 | 34.4 | 32.8 | 29.8 | 47.6 | 19.1 | M33, M32, 11⁄4" UNF | M35 |
| 18362 | 41.4 | 44.8 | 43.0 | 39.7 | 57.2 | 19.0 | M42, 11⁄4" BSP | M45 |
| 18366 | 48.3 | 52.7 | 50.7 | 46.3 | 63.5 | 25.4 | M48, 13⁄4" BSP | M52 |
| 18368 | 51.5 | 54.1 | 52.0 | 49.6 | 66.7 | 18.5 | - | - |
| 18373 | 55.0 | 61.0 | 59.0 | 52.5 | 76.7 | 25.0 | - | - |
| 18374 | 62.0 | 66.4 | 64.3 | 59.0 | 83.0 | 28.0 | - | - |
