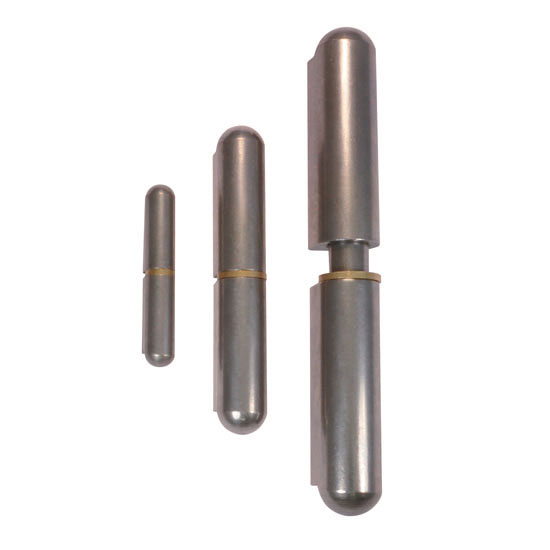

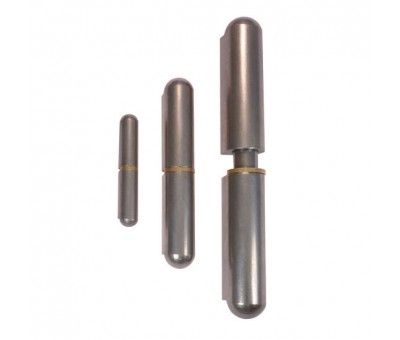

La charnière à souder SR5582 est disponible avec axe en acier ou en laiton. Son design très simple la rend très polyvalente et adaptée à de multiples applications.
Charnières gonds à souder
Caractéristiques
| Charnières | Axe Type | Type | L (mm) | D (mm) | d (mm) | S (mm) |
| 493488 | Acier | 1 | 40.0 | 8.0 | 5.0 | 10.0 |
| 493489 | Acier | 1 | 50.0 | 8.0 | 5.0 | 10.0 |
| 493490 | Acier | 1 | 60.0 | 10.0 | 6.0 | 12.5 |
| 493491 | Acier | 1 | 70.0 | 11.5 | 6.0 | 13.2 |
| 493492 | Acier | 1 | 80.0 | 13.0 | 8.0 | 16.0 |
| 493493 | Acier | 1 | 100.0 | 16.0 | 10.0 | 20.0 |
| 493494 | Acier | 1 | 120.0 | 16.0 | 10.0 | 20.0 |
| 493495 | Acier | 1 | 150.0 | 20.0 | 13.0 | 25.0 |
| 493496 | Acier | 1 | 180.0 | 20.0 | 13.0 | 25.0 |
| 493497 | Laiton | 1 | 40.0 | 8.0 | 5.0 | 10.0 |
| 493498 | Laiton | 1 | 50.0 | 8.0 | 5.0 | 10.0 |
| 493499 | Laiton | 1 | 60.0 | 10.0 | 6.0 | 12.5 |
| 493500 | Laiton | 1 | 70.0 | 11.5 | 6.0 | 13.2 |
| 493501 | Laiton | 1 | 80.0 | 13.0 | 8.0 | 16.0 |
| 493502 | Laiton | 1 | 100.0 | 16.0 | 10.0 | 20.0 |
| 493503 | Laiton | 1 | 120.0 | 16.0 | 10.0 | 20.0 |
| 493504 | Laiton | 1 | 150.0 | 20.0 | 13.0 | 25.0 |
| 493505 | Laiton | 1 | 180.0 | 20.0 | 13.0 | 25.0 |
| 497540 | Acier | 2 | 60.0 | 10.0 | 6.0 | 12.5 |
| 497541 | Acier | 2 | 70.0 | 11.5 | 6.0 | 13.2 |
| 497542 | Acier | 2 | 80.0 | 13.0 | 8.0 | 16.0 |
| 497543 | Acier | 2 | 100.0 | 16.0 | 10.0 | 20.0 |
| 497544 | Acier | 2 | 120.0 | 16.0 | 10.0 | 20.0 |
| 497545 | Acier | 2 | 150.0 | 20.0 | 13.0 | 25.0 |
| 497546 | Acier | 2 | 180.0 | 20.0 | 13.0 | 25.0 |
| 497547 | Laiton | 2 | 60.0 | 10.0 | 6.0 | 12.5 |
| 497548 | Laiton | 2 | 70.0 | 11.5 | 6.0 | 13.2 |
| 497549 | Laiton | 2 | 80.0 | 13.0 | 8.0 | 16.0 |
| 497550 | Laiton | 2 | 100.0 | 16.0 | 10.0 | 20.0 |
| 497551 | Laiton | 2 | 120.0 | 16.0 | 10.0 | 20.0 |
| 497552 | Laiton | 2 | 150.0 | 20.0 | 13.0 | 25.0 |
| 497553 | Laiton | 2 | 180.0 | 20.0 | 13.0 | 25.0 |
