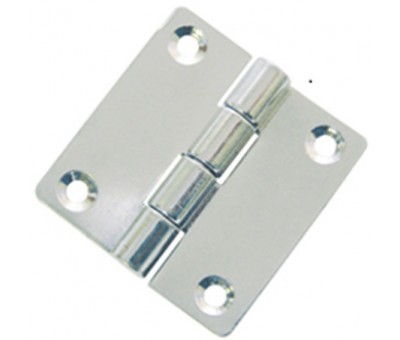

La charnière carrée SR5420 est fabriquée en acier inoxydable poli 304. Dotées de trous fraisés, ces sharnières s'utilisent dans différents types d'applications.
Caractéristiques
| Part No. | Type | L1 (mm) | L2 (mm) | L3 (mm) | H1 (mm) | H2 (mm) | W (mm) | D1 (mm) |
| 491944 | 1 | 39.0 | 27.6 | - | 40.0 | 30.0 | 1.5 | 3.5 |
| 491945 | 2 | 40.0 | 25.3 | - | 40.0 | 21.2 | 1.5 | 4.6 |
| 491946 | 3 | 39.0 | 23.0 | - | 40.0 | 24.0 | 1.5 | 4.6 |
| 491947 | 4 | 90.0 | 60.0 | - | 60.0 | 40.0 | 3.0 | 6.3 |
| 491948 | 5 | 33.5 | 20.5 | - | 50.8 | 38.8 | 1.0 | 4.6 |
| 491949 | 6 | 49.5 | 35.5 | 22.8 | 60.0 | 48.0 | 1.5 | 3.7 |
| 491950 | 7 | 100.0 | 77.0 | 29.0 | 40.0 | 25.0 | 1.5 | 6.0 |
| 491951 | 8 | 70.5 | 55.0 | 26.5 | 55.0 | 32.0 | 1.5 | 6.8 |
