Embouts protecteurs à lamelles ronds - Multi-usage

En savoir plus

Caractéristiques :

Voir toutes les caractéristiques
01 81 80 51 41

Description

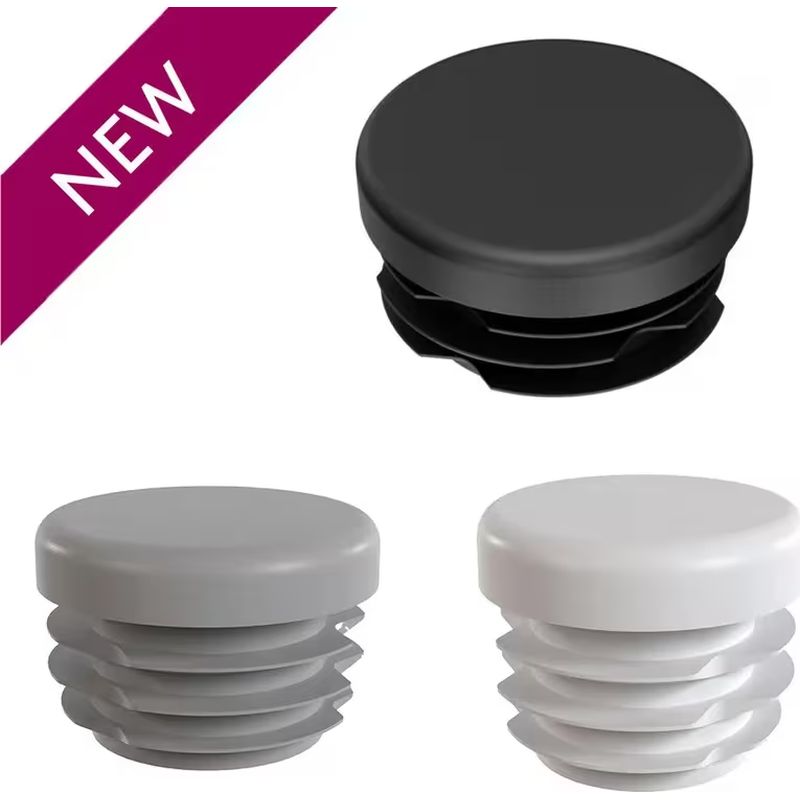

Les embouts protecteurs à lamelles ronds multi-fonctions sont un choix idéal lorsque l’esthétique de votre produit final n’est pas une priorité. Ils s’adaptent parfaitement aux tubes, poteaux et colonnettes ronds et aident à éviter la contamination, tout en assurant la sécurité et une finition nette des bords tranchants des tubes tout juste coupés.

Faciles à installer par pression manuelle ou avec un marteau, offrant un processus d’assemblage rapide et efficace. Ils peuvent être utilisés dans la construction de machines ou toute application pour lesquelles un tube structurel est nécessaire.

Une gamme à la fois pratique et économique qui inclut une large variété de tailles.

  • Matière : PEBD
  • Couleur : Gris, Blanc, Noir
  • Séries : SRILT

Caractéristiques

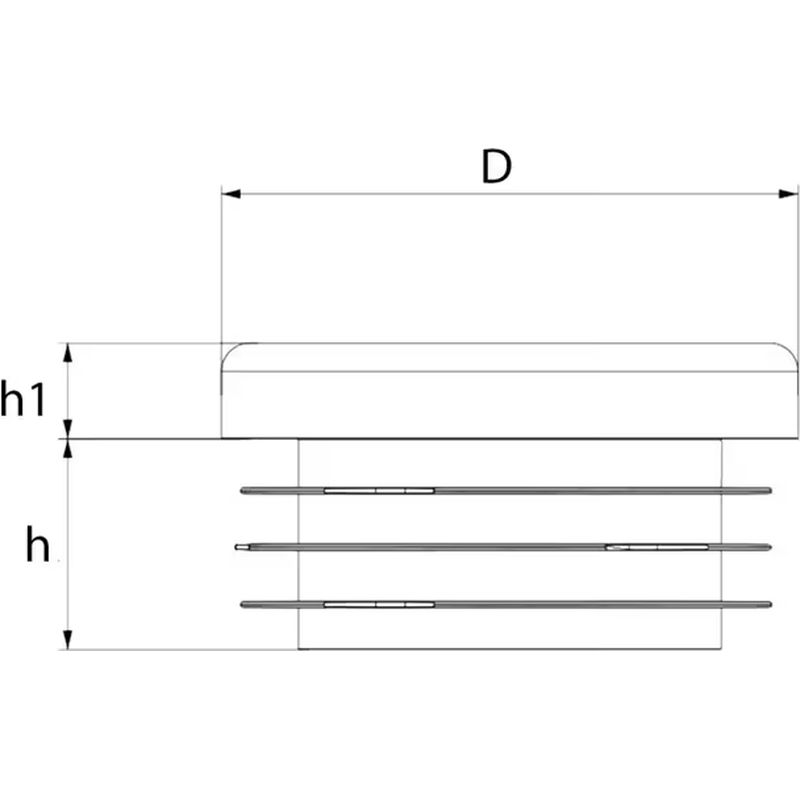

Référence Essentra Couleur D h H1 Épaisseur maximale de paroi Épaisseur minimale de paroi
20573881 Noir 13.0 mm 11.0 mm 4.0 mm 2.0 mm 1.0 mm
20573928 Noir 18.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20573898 Noir 14.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20573942 Noir 20.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20573904 Noir 15.0 mm 13.0 mm 3.0 mm 2.0 mm 1.0 mm
20573911 Noir 16.0 mm 11.0 mm 5.0 mm 2.0 mm 1.0 mm
20573980 Noir 25.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574147 Noir 45.0 mm 11.5 mm 5.0 mm 5.0 mm 3.0 mm
20574192 Noir 50.8 mm 11.5 mm 5.0 mm 3.0 mm 1.2 mm
20574079 Noir 38.0 mm 11.5 mm 5.0 mm 3.5 mm 1.0 mm
20573966 Noir 22.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20573867 Noir 10.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20573874 Noir 12.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20574536 Noir 193.7 mm 34.0 mm 6.0 mm 8.0 mm 3.2 mm
20574314 Noir 76.0 mm 21.5 mm 6.0 mm 6.0 mm 3.5 mm
20574338 Noir 85.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20574499 Noir 150.0 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20574529 Noir 177.8 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20574260 Noir 65.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20574321 Noir 80.0 mm 21.0 mm 4.0 mm 3.0 mm 1.5 mm
20574505 Noir 160.0 mm 34.0 mm 6.0 mm 7.0 mm 2.0 mm
20574376 Noir 95.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20574437 Noir 110.0 mm 28.5 mm 6.0 mm 5.0 mm 3.0 mm
20574482 Noir 140.0 mm 34.0 mm 6.0 mm 6.0 mm 2.0 mm
20574512 Noir 168.3 mm 34.0 mm 6.0 mm 7.0 mm 2.5 mm
20574390 Noir 101.6 mm 28.0 mm 6.0 mm 4.5 mm 2.0 mm
20574444 Noir 120.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20574451 Noir 127.0 mm 33.0 mm 6.0 mm 4.0 mm 2.0 mm
20574420 Noir 108.0 mm 28.0 mm 6.0 mm 4.5 mm 2.0 mm
20574468 Noir 130.0 mm 33.0 mm 6.0 mm 7.0 mm 3.2 mm
20574369 Noir 90.0 mm 20.0 mm 6.0 mm 5.0 mm 1.5 mm
20574383 Noir 100.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20574178 Noir 50.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20574154 Noir 48.0 mm 11.5 mm 5.0 mm 3.6 mm 1.2 mm
20574222 Noir 57.2 mm 14.5 mm 5.0 mm 2.7 mm 1.2 mm
20574406 Noir 102.0 mm 20.0 mm 5.0 mm 6.0 mm 3.6 mm
20574475 Noir 133.0 mm 33.0 mm 6.0 mm 6.0 mm 2.0 mm
20574185 Noir 50.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20574239 Noir 60.0 mm 18.5 mm 5.0 mm 3.0 mm 1.5 mm
20574277 Noir 70.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20574345 Noir 88.9 mm 21.5 mm 6.0 mm 4.0 mm 1.5 mm
20574062 Noir 35.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574130 Noir 45.0 mm 11.0 mm 5.0 mm 3.0 mm 1.0 mm
20574284 Noir 75.0 mm 21.5 mm 6.0 mm 3.5 mm 1.0 mm
20574291 Noir 75.0 mm 21.5 mm 6.0 mm 5.0 mm 3.0 mm
20574215 Noir 55.0 mm 14.5 mm 5.0 mm 3.0 mm 1.0 mm
20775247 Blanc 28.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775391 Gris 32.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20775476 Blanc 32.0 mm 12.0 mm 5.0 mm 3.0 mm 1.0 mm
20775339 Gris 30.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775520 Blanc 34.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775599 Blanc 35.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775728 Gris 40.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775902 Gris 42.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775940 Gris 43.0 mm 11.5 mm 5.0 mm 2.5 mm 2.0 mm
20774950 Gris 22.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20775094 Gris 25.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775148 Gris 27.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775650 Blanc 38.0 mm 11.5 mm 5.0 mm 3.5 mm 1.0 mm
20775803 Blanc 42.0 mm 11.5 mm 5.0 mm 6.0 mm 3.0 mm
20775155 Blanc 27.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775353 Blanc 30.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775254 Gris 30.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20775469 Gris 32.0 mm 12.0 mm 5.0 mm 3.0 mm 1.0 mm
20775582 Gris 35.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775797 Gris 42.0 mm 11.5 mm 5.0 mm 6.0 mm 3.0 mm
20775407 Blanc 32.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20774479 Gris 159.0 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20774516 Gris 160.0 mm 34.0 mm 6.0 mm 7.0 mm 2.5 mm
20774486 Blanc 159.0 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20774745 Gris 18.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774639 Blanc 177.8 mm 34.0 mm 6.0 mm 8.0 mm 3.2 mm
20774769 Gris 193.7 mm 34.0 mm 6.0 mm 8.0 mm 2.9 mm
20774851 Gris 20.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20774790 Blanc 19.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775018 Blanc 23.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775223 Gris 28.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20774868 Blanc 20.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775001 Gris 23.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20774882 Gris 21.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774974 Blanc 22.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774592 Gris 168.3 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20774783 Gris 19.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775124 Blanc 25.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775261 Blanc 30.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20774752 Blanc 18.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774899 Blanc 21.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774417 Gris 15.0 mm 13.0 mm 3.0 mm 2.0 mm 1.0 mm
20774578 Gris 16.0 mm 11.0 mm 5.0 mm 2.0 mm 1.0 mm
20773847 Blanc 101.6 mm 28.0 mm 6.0 mm 6.0 mm 3.6 mm
20773885 Gris 102.0 mm 20.0 mm 5.0 mm 4.0 mm 2.0 mm
20773816 Blanc 100.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20773939 Gris 105.0 mm 29.0 mm 6.0 mm 4.5 mm 2.0 mm
20773809 Gris 100.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20773946 Blanc 105.0 mm 29.0 mm 6.0 mm 4.5 mm 2.0 mm
20773892 Blanc 102.0 mm 20.0 mm 5.0 mm 4.0 mm 2.0 mm
20775957 Blanc 43.0 mm 11.5 mm 5.0 mm 2.5 mm 2.0 mm
20776152 Blanc 50.8 mm 11.5 mm 5.0 mm 3.0 mm 1.2 mm
20776169 Gris 50.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20776176 Blanc 50.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20776367 Gris 60.0 mm 21.0 mm 5.0 mm 5.0 mm 3.0 mm
20776497 Gris 63.5 mm 20.5 mm 5.0 mm 3.5 mm 1.5 mm
20775513 Gris 34.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20775643 Gris 38.0 mm 11.5 mm 5.0 mm 3.5 mm 1.0 mm
20775735 Blanc 40.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20776121 Blanc 48.0 mm 11.5 mm 5.0 mm 3.6 mm 1.2 mm
20776220 Gris 50.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20775919 Blanc 42.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20776039 Gris 48.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20776268 Gris 52.0 mm 14.5 mm 5.0 mm 3.5 mm 1.5 mm
20776305 Blanc 55.0 mm 14.5 mm 5.0 mm 3.0 mm 1.0 mm
20776374 Blanc 60.0 mm 21.0 mm 5.0 mm 5.0 mm 3.0 mm
20776589 Gris 76.0 mm 21.5 mm 6.0 mm 6.0 mm 3.5 mm
20776145 Gris 50.8 mm 11.5 mm 5.0 mm 3.0 mm 1.2 mm
20776237 Blanc 50.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20776725 Blanc 85.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20776855 Gris 90.0 mm 20.0 mm 6.0 mm 5.0 mm 1.5 mm
20775988 Blanc 45.0 mm 11.0 mm 5.0 mm 3.0 mm 1.0 mm
20776046 Blanc 48.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20775971 Gris 45.0 mm 11.0 mm 5.0 mm 3.0 mm 1.0 mm
20776114 Gris 48.0 mm 11.5 mm 5.0 mm 3.6 mm 1.2 mm
20776527 Blanc 65.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20776503 Blanc 63.5 mm 20.5 mm 5.0 mm 3.5 mm 1.5 mm
20776466 Blanc 60.0 mm 18.5 mm 5.0 mm 3.0 mm 1.5 mm
20776701 Blanc 80.0 mm 21.0 mm 4.0 mm 3.0 mm 1.5 mm
20773830 Gris 101.6 mm 28.0 mm 6.0 mm 6.0 mm 3.6 mm
20774219 Blanc 127.0 mm 33.0 mm 6.0 mm 7.0 mm 3.2 mm
20774325 Blanc 140.0 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20774363 Gris 150.0 mm 34.0 mm 6.0 mm 7.0 mm 2.0 mm
20774356 Blanc 14.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20773960 Gris 10.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20773984 Gris 108.0 mm 28.0 mm 6.0 mm 5.0 mm 3.0 mm
20773991 Blanc 108.0 mm 28.0 mm 6.0 mm 5.0 mm 3.0 mm
20774127 Blanc 120.0 mm 28.5 mm 6.0 mm 4.0 mm 2.0 mm
20774080 Gris 114.0 mm 29.0 mm 6.0 mm 5.5 mm 2.6 mm
20774202 Gris 127.0 mm 33.0 mm 6.0 mm 7.0 mm 3.2 mm
20774233 Blanc 12.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20774271 Gris 133.0 mm 33.0 mm 6.0 mm 6.0 mm 2.0 mm
20774301 Blanc 13.0 mm 11.0 mm 4.0 mm 2.0 mm 1.0 mm
20774318 Gris 140.0 mm 34.0 mm 6.0 mm 6.5 mm 2.0 mm
20774028 Gris 110.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20774189 Gris 12.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20774097 Blanc 114.0 mm 29.0 mm 6.0 mm 5.5 mm 2.6 mm
20774158 Blanc 125.0 mm 33.0 mm 6.0 mm 6.0 mm 2.0 mm
20774257 Gris 130.0 mm 33.0 mm 6.0 mm 6.0 mm 2.0 mm
20774349 Gris 14.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20774295 Gris 13.0 mm 11.0 mm 4.0 mm 2.0 mm 1.0 mm
20774431 Blanc 15.0 mm 13.0 mm 3.0 mm 2.0 mm 1.0 mm
20774615 Blanc 16.0 mm 11.0 mm 5.0 mm 2.0 mm 1.0 mm
20774004 Blanc 10.0 mm 11.0 mm 3.5 mm 2.0 mm 1.0 mm
20774110 Gris 120.0 mm 28.5 mm 6.0 mm 4.0 mm 2.0 mm
20574017 Noir 30.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20574024 Noir 30.0 mm 11.5 mm 5.0 mm 4.5 mm 2.5 mm
20573973 Noir 23.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20573935 Noir 19.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20573997 Noir 27.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574031 Noir 32.0 mm 12.0 mm 5.0 mm 3.0 mm 1.0 mm
20574000 Noir 28.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574093 Noir 42.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574109 Noir 42.0 mm 11.5 mm 5.0 mm 6.0 mm 3.0 mm
20574208 Noir 52.0 mm 14.5 mm 5.0 mm 3.5 mm 1.5 mm
20574246 Noir 60.0 mm 21.0 mm 5.0 mm 5.0 mm 3.0 mm
20574307 Noir 76.0 mm 21.5 mm 6.0 mm 4.0 mm 1.6 mm
20574352 Noir 88.9 mm 21.0 mm 6.0 mm 6.0 mm 3.5 mm
20573959 Noir 21.0 mm 11.5 mm 5.0 mm 2.0 mm 1.0 mm
20574048 Noir 32.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20574086 Noir 40.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574116 Noir 43.0 mm 11.5 mm 5.0 mm 2.5 mm 2.0 mm
20574123 Noir 44.5 mm 11.5 mm 5.0 mm 3.2 mm 1.2 mm
20574161 Noir 48.0 mm 11.5 mm 5.0 mm 5.0 mm 2.5 mm
20574413 Noir 105.0 mm 29.0 mm 6.0 mm 4.0 mm 2.0 mm
20574055 Noir 34.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20574253 Noir 63.5 mm 20.5 mm 5.0 mm 3.5 mm 1.5 mm
20776510 Gris 65.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20776718 Gris 85.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20776756 Blanc 88.9 mm 21.0 mm 6.0 mm 6.0 mm 3.5 mm
20776893 Blanc 95.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20777364 Gris 80.0 mm 21.0 mm 4.0 mm 5.5 mm 3.0 mm
20776794 Gris 88.9 mm 21.5 mm 6.0 mm 4.0 mm 1.5 mm
20776862 Blanc 90.0 mm 20.0 mm 6.0 mm 5.0 mm 1.5 mm
20776886 Gris 95.0 mm 21.0 mm 6.0 mm 4.0 mm 1.5 mm
20777357 Gris 40.0 mm 11.5 mm 5.0 mm 5.0 mm 3.0 mm
20777234 Blanc 110.0 mm 28.5 mm 6.0 mm 4.5 mm 2.0 mm
20777340 Gris 36.0 mm 11.5 mm 5.0 mm 3.0 mm 1.0 mm
20777289 Gris 75.0 mm 21.5 mm 6.0 mm 3.5 mm 1.0 mm
20777333 Blanc 24.0 mm 11.5 mm 5.0 mm 2.5 mm 1.0 mm
20777326 Blanc 165.0 mm 34.0 mm 6.0 mm 7.5 mm 3.2 mm
20776442 Gris 60.0 mm 18.5 mm 5.0 mm 3.0 mm 1.5 mm
20776541 Blanc 70.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20776633 Gris 76.0 mm 21.5 mm 6.0 mm 4.0 mm 1.6 mm
20776640 Blanc 76.0 mm 21.5 mm 6.0 mm 4.0 mm 1.6 mm
20776534 Gris 70.0 mm 21.0 mm 5.0 mm 3.5 mm 1.5 mm
20776688 Gris 80.0 mm 21.0 mm 4.0 mm 3.0 mm 1.5 mm
20776732 Gris 88.9 mm 21.0 mm 6.0 mm 6.0 mm 3.5 mm
20776817 Blanc 88.9 mm 21.5 mm 6.0 mm 4.0 mm 1.5 mm
20776299 Gris 55.0 mm 14.5 mm 5.0 mm 3.0 mm 1.0 mm
20776329 Gris 57.2 mm 14.5 mm 5.0 mm 2.7 mm 1.2 mm
20776336 Blanc 57.2 mm 14.5 mm 5.0 mm 2.7 mm 1.2 mm

Mot du fournisseur

Les inserts et les patins pour tubes ronds sont disponibles dans différents types de raccords, tels que les raccords à emboiter, les raccords à vis et les raccords filetés, et peuvent avoir des lamelles, être lisses ou être filetés pour plus de sécurité. Ces composants sont largement utilisés dans des applications telles que :

  • Fabrication de meubles et de métaux
  • Finition de meubles
  • Composants mécaniques
  • Composants polyvalents
