Support métrique à visser pour CI, type TCBN
Support métrique à visser pour CI, type TCBN

Support métrique à visser pour CI, type TCBN

En savoir plus

Caractéristiques :

Voir toutes les caractéristiques
01 81 80 51 41

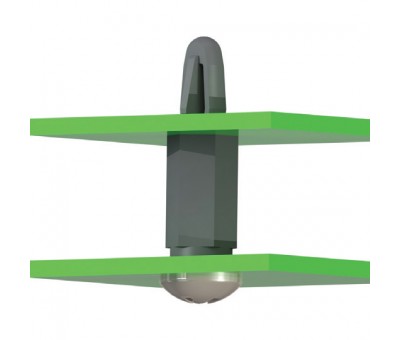

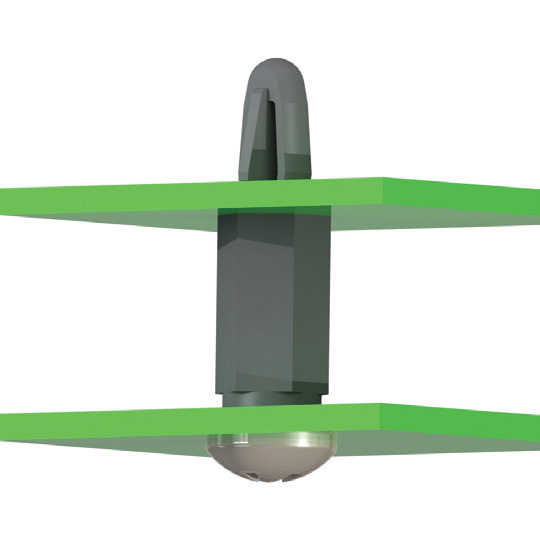

Le support TCBN est un support pour circuit imprimé de type métrique à visser.
PA 6/6 UL94 HB noir, RMS-172

Caractéristiques

Part No. Filet Épaisseur
panneau (mm)		 "H" (mm) "L" "I"
TCBN-T1-M3-6-10 M3 1.6 6 10 8
TCBN-T1-M3-6-12 M3 1.6 6 12 10
TCBN-T1-M3-6-15 M3 1.6 6 15 10
TCBN-T1-M3-6-18 M3 1.6 6 18 10
TCBN-T1-M3-6-20 M3 1.6 6 20 10
TCBN-T1-M3-6-25 M3 1.6 6 25 10
TCBN-T1-M3-6-30 M3 1.6 6 30 10
TCBN-T1-M3-6-40 M3 1.6 6 40 10
TCBN-T1-M3-6-45 M3 1.6 6 45 10
TCBN-T1-M3-6-5 M3 1.6 6 5 3
TCBN-T1-M3-6-50 M3 1.6 6 50 10
TCBN-T1-M3-6-55 M3 1.6 6 55 10
TCBN-T1-M3-6-6 M3 1.6 6 6 4
TCBN-T1-M3-6-60 M3 1.6 6 60 10
TCBN-T1-M3-6-7 M3 1.6 6 7 5
TCBN-T1-M3-6-8 M3 1.6 6 8 6
TCBN-T1-M3-6-9 M3 1.6 6 9 7
TCBN-T1-M3-8-10 M3 1.6 8 10 8
TCBN-T1-M3-8-12 M3 1.6 8 12 10
TCBN-T1-M3-8-15 M3 1.6 8 15 10
TCBN-T1-M3-8-18 M3 1.6 8 18 10
TCBN-T1-M3-8-20 M3 1.6 8 20 10
TCBN-T1-M3-8-25 M3 1.6 8 25 10
TCBN-T1-M3-8-30 M3 1.6 8 30 10
TCBN-T1-M3-8-40 M3 1.6 8 40 10
TCBN-T1-M3-8-45 M3 1.6 8 45 10
TCBN-T1-M3-8-5 M3 1.6 8 5 3
TCBN-T1-M3-8-50 M3 1.6 8 50 10
TCBN-T1-M3-8-55 M3 1.6 8 55 10
TCBN-T1-M3-8-6 M3 1.6 8 6 4
TCBN-T1-M3-8-60 M3 1.6 8 60 10
TCBN-T1-M3-8-7 M3 1.6 8 7 5
TCBN-T1-M3-8-8 M3 1.6 8 8 6
TCBN-T1-M3-8-9 M3 1.6 8 9 7
TCBN-T1-M4-8-10 M4 1.6 6 10 8
TCBN-T1-M4-8-12 M4 1.6 6 12 10
TCBN-T1-M4-8-15 M4 1.6 6 15 10
TCBN-T1-M4-8-18 M4 1.6 6 18 10
TCBN-T1-M4-8-20 M4 1.6 6 20 10
TCBN-T1-M4-8-25 M4 1.6 6 25 10
TCBN-T1-M4-8-30 M4 1.6 6 30 10
TCBN-T1-M4-8-40 M4 1.6 6 40 10
TCBN-T1-M4-8-45 M4 1.6 6 45 10
TCBN-T1-M4-8-5 M4 1.6 6 5 3
TCBN-T1-M4-8-50 M4 1.6 6 50 10
TCBN-T1-M4-8-55 M4 1.6 6 55 10
TCBN-T1-M4-8-6 M4 1.6 6 6 4
TCBN-T1-M4-8-60 M4 1.6 6 60 10
TCBN-T1-M4-8-7 M4 1.6 6 7 5
TCBN-T1-M4-8-8 M4 1.6 6 8 6
TCBN-T1-M4-8-9 M4 1.6 6 9 7
TCBN-T2-M3-6-10 M3 2 6 10 8
TCBN-T2-M3-6-12 M3 2 6 12 10
TCBN-T2-M3-6-15 M3 2 6 15 10
TCBN-T2-M3-6-18 M3 2 6 18 10
TCBN-T2-M3-6-20 M3 2 6 20 10
TCBN-T2-M3-6-25 M3 2 6 25 10
TCBN-T2-M3-6-30 M3 2 6 30 10
TCBN-T2-M3-6-40 M3 2 6 40 10
TCBN-T2-M3-6-45 M3 2 6 45 10
TCBN-T2-M3-6-5 M3 2 6 5 3
TCBN-T2-M3-6-50 M3 2 6 50 10
TCBN-T2-M3-6-55 M3 2 6 55 10
TCBN-T2-M3-6-6 M3 2 6 6 4
TCBN-T2-M3-6-60 M3 2 6 60 10
TCBN-T2-M3-6-7 M3 2 6 7 5
TCBN-T2-M3-6-8 M3 2 6 8 6
TCBN-T2-M3-6-9 M3 2 6 9 7
TCBN-T2-M3-8-10 M3 2 8 10 8
TCBN-T2-M3-8-12 M3 2 8 12 10
TCBN-T2-M3-8-15 M3 2 8 15 10
TCBN-T2-M3-8-18 M3 2 8 18 10
TCBN-T2-M3-8-20 M3 2 8 20 10
TCBN-T2-M3-8-25 M3 2 8 25 10
TCBN-T2-M3-8-30 M3 2 8 30 10
TCBN-T2-M3-8-40 M3 2 8 40 10
TCBN-T2-M3-8-45 M3 2 8 45 10
TCBN-T2-M3-8-5 M3 2 8 5 3
TCBN-T2-M3-8-50 M3 2 8 50 10
TCBN-T2-M3-8-55 M3 2 8 55 10
TCBN-T2-M3-8-6 M3 2 8 6 4
TCBN-T2-M3-8-60 M3 2 8 60 10
TCBN-T2-M3-8-7 M3 2 8 7 5
TCBN-T2-M3-8-8 M3 2 8 8 6
TCBN-T2-M3-8-9 M3 2 8 9 7
TCBN-T2-M4-8-10 M4 2 8 10 8
TCBN-T2-M4-8-12 M4 2 8 12 10
TCBN-T2-M4-8-15 M4 2 8 15 10
TCBN-T2-M4-8-18 M4 2 8 18 10
TCBN-T2-M4-8-20 M4 2 8 20 10
TCBN-T2-M4-8-25 M4 2 8 25 10
TCBN-T2-M4-8-30 M4 2 8 30 10
TCBN-T2-M4-8-40 M4 2 8 40 10
TCBN-T2-M4-8-45 M4 2 8 45 10
TCBN-T2-M4-8-5 M4 2 8 5 3
TCBN-T2-M4-8-50 M4 2 8 50 10
TCBN-T2-M4-8-55 M4 2 8 55 10
TCBN-T2-M4-8-6 M4 2 8 6 4
TCBN-T2-M4-8-60 M4 2 8 60 10
TCBN-T2-M4-8-7 M4 2 8 7 5
TCBN-T2-M4-8-8 M4 2 8 8 6
TCBN-T2-M4-8-9 M4 2 8 9 7
