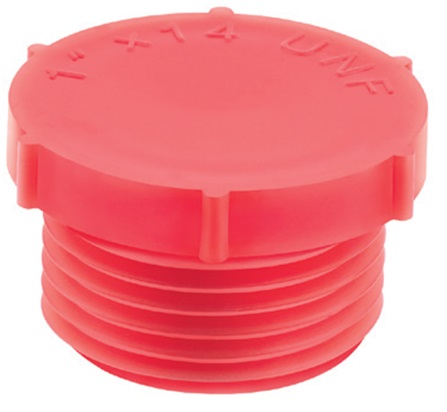

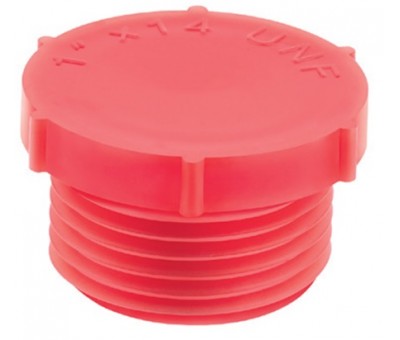

La particularité des bouchons de protection filetés SR 1002 est de disposer d'une tête permettant une prise et une manipulation facile. Produit en polyéthylène basse densité rouge, ce bouchon plastique fileté dispose d'un filetage qui garantit un bon ajustage.
Il constitue une excellente protection contre l'humidité et la corrosion, ainsi que la poussière.
Ces bouchons plastiques trouvent leur application dans l'industrie hydraulique, pneumatique et la construction mécanique
Caractéristiques

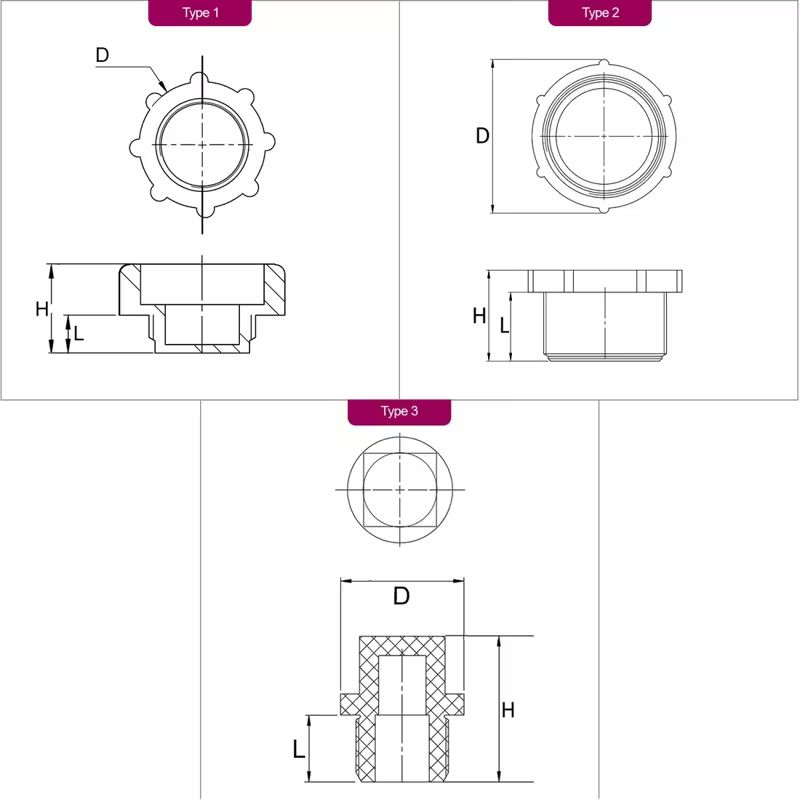

| Part No. | Taille de filetage | D (mm) | h (mm) | H (mm) | Type |
| 10128 | M22 x 1.5 | 28.2 | 13.7 | 18.3 | Métrique |
| 10319 | 3” x 11 | 105.0 | 11.3 | 16.5 | BSP/Gas |
| 10326 | 7⁄8" x 14 | 28.8 | 13.6 | 18.5 | UNF/JIC |
| 10458 | M18 x 1.5 | 23.5 | 13.5 | 18.3 | Métrique |
| 10459 | 1 1⁄4" x 11 | 49.9 | 15.0 | 20.9 | BSP/Gas |
| 10460 | 1 1⁄16" x 12 | 33.4 | 13.8 | 18.4 | UNF/JIC |
| 10496 | 2” x 11 | 73.7 | 10.7 | 17.5 | BSP/Gas |
| 10498 | 5⁄16" x 18 | 14.5 | 7.4 | 12.0 | UNF/JIC |
| 10511 | 5⁄8" x 14 | 31.3 | 13.9 | 18.4 | BSP/Gas |
| 10575 | 3⁄4" x 16 | 27.0 | 13.8 | 18.7 | UNF/JIC |
| 10588 | 1⁄4" x 19 | 18.8 | 6.5 | 12.8 | BSP/Gas |
| 10590 | 1⁄2" x 14 | 28.0 | 10.3 | 17.3 | BSP/Gas |
| 10651 | 1⁄8" x 28 | 16.4 | 4.2 | 10.5 | BSP/Gas |
| 10668 | 9⁄16" x 18 | 22.6 | 10.7 | 15.4 | UNF/JIC |
| 10671 | 1 5⁄16" x 12 | 39.3 | 11.0 | 16.3 | UNF/JIC |
| 10692 | 3⁄8x 24 | 13.7 | 9.5 | 14.0 | UNF/JIC |
| 10696 | 1⁄2" x 20 | 18.5 | 10.5 | 15.3 | UNF/JIC |
| 10709 | 5⁄16" x 24 | 14.8 | 7.4 | 12.3 | UNF/JIC |
| 10731 | 3⁄4" x 14 | 32.3 | 11.0 | 17.0 | BSP/Gas |
| 10763 | 7⁄16" x 20 | 17.4 | 11.0 | 16.1 | UNF/JIC |
| 10810 | 1” x 11 | 39.8 | 10.8 | 16.9 | BSP/Gas |
| 10940 | 5⁄8" x 18 | 21.0 | 10.0 | 14.8 | UNF/JIC |
| 10996 | 3⁄8" x 19 | 22.9 | 5.5 | 12.0 | BSP/Gas |
| 11242 | 1 1⁄2" x 11 | 55.2 | 10.8 | 16.9 | BSP/Gas |
| 11429 | 7⁄8" x 14 | 38.0 | 13.5 | 18.1 | BSP/Gas |
| 11506 | 1 3⁄16" x 12 | 36.8 | 13.5 | 18.3 | UNF/JIC |
| 11752 | 1 5⁄8" x 12 | 50.6 | 12.9 | 17.3 | UNF/JIC |
| 11755 | 1 7⁄8" x 12 | 58.4 | 16.7 | 22.5 | UNF/JIC |
| 12011 | M8 x 1 | 12.3 | 9.5 | 14.3 | Métrique |
| 12012 | M10 x 1 | 15.3 | 10.4 | 14.6 | Métrique |
| 12013 | M12 x 1 | 18.5 | 10.7 | 16.7 | Métrique |
| 12017 | M12 x 1.5 | 16.7 | 8.7 | 16.3 | Métrique |
| 12018 | M14 x 1.5 | 18.5 | 9.5 | 17.2 | Métrique |
| 12019 | M16 x 1.5 | 22.0 | 12.5 | 17.2 | Métrique |
| 12020 | M20 x 1.5 | 26.3 | 14.0 | 18.2 | Métrique |
| 12021 | M24 x 1.5 | 31.3 | 13.8 | 18.5 | Métrique |
| 12022 | M25 x 1.5 | 31.3 | 14.0 | 18.5 | Métrique |
| 12023 | M26 x 1.5 | 32.7 | 13.8 | 18.7 | Métrique |
| 12030 | M52 x 1.5 | 63.7 | 15.5 | 21.5 | Métrique |
| 12031 | 7⁄16" x 24 | 17.8 | 7.1 | 12.1 | UNF/JIC |
| 12033 | 9⁄16" x 24 | 18.9 | 9.0 | 13.6 | UNF/JIC |
| 12040 | 2 1⁄2" x 12 | 73.6 | 15.0 | 20.6 | UNF/JIC |
| 12359 | 1 1⁄16" x 14 | 33.3 | 13.7 | 18.3 | UNF/JIC |
| 12785 | 1” x 14 | 32.0 | 13.2 | 17.8 | UNF/JIC |
| 12786 | 11⁄16" x 16 | 25.6 | 13.5 | 18.1 | UNF/JIC |
| 12827 | 13⁄16" x 16 | 26.7 | 13.5 | 18.1 | UNF/JIC |
| 12965 | 5⁄8" x 24 | 20.7 | 10.0 | 14.8 | UNF/JIC |
