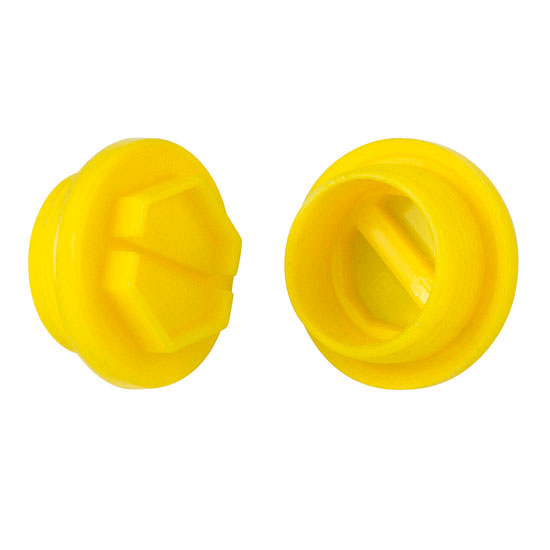

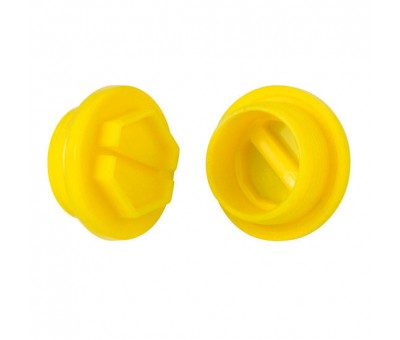

Les bouchons plastique étanches Slottex SR 1007 sont en nylon 6 jaune. Leur étanchéité est assurée grâce au double joint situé sous la collerette.
Leur pose est facile & rapide. Ils peuvent être mis en place à l'aide d'un tournevis, d'une clé Allen. Le serrage peut-être réalisé manuellement ou avec un outil pneumatique. La tête de ce bouchon Slottex est conçue de manière à ne produire aucune rétention de liquide.
Caractéristiques
| Part No. | Filet | D (mm) | H (mm) | h1 (mm) | SW1 (mm) | SW2 (mm) | Type |
| 110836 | M14 x 1.5 | 19.0 | 17.5 | 10.0 | 13.0 | 10.0 | Métrique |
| 110837 | M16 x 1.5 | 22.3 | 17.5 | 9.3 | 15.0 | 12.0 | Métrique |
| 110838 | M18 x 1.5 | 24.0 | 17.5 | 9.0 | 17.0 | 14.0 | Métrique |
| 110839 | M22 x 1.5 | 28.0 | 17.5 | 10.0 | 21.0 | 18.0 | Métrique |
| 110840 | 1⁄4" x 19 | 19.0 | 17.5 | 10.0 | 13.0 | 10.0 | BSP |
| 110841 | 3⁄8" x 19 | 22.0 | 17.5 | 10.0 | 15.0 | 12.0 | BSP |
| 110842 | 1⁄2" x 14 | 27.0 | 19.5 | 12.0 | 19.0 | 16.0 | BSP |
| 110843 | 3⁄4" x 14 | 32.0 | 19.5 | 12.0 | 24.0 | 21.0 | BSP |
| 110844 | 1” x 11 | 40.0 | 22.5 | 15.0 | 30.0 | 27.0 | BSP |
| 110845 | 1⁄8" x 28 | 16.0 | 15.5 | 8.0 | 12.0 | 9.0 | BSP |
| 462836 | M8 x 1 | 12.5 | 15.5 | 8.0 | 7.0 | 4.0 | Métrique |
| 462837 | M10 x 1 | 14.5 | 16.5 | 9.0 | 9.0 | 6.0 | Métrique |
| 462838 | M12 x 1.5 | 17.0 | 16.5 | 9.0 | 10.0 | 7.0 | Métrique |
| 462842 | M20 x 1.5 | 26.0 | 17.5 | 10.0 | 19.0 | 16.0 | Métrique |
| 462853 | 1 1⁄4" x 11 | 50.0 | 22.5 | 15.0 | 36.0 | 33.0 | BSP |
| 466948 | 3⁄8" x 24 | 16.0 | 17.5 | 10.0 | 9.0 | 6.0 | BSP |
| 466949 | 7⁄16" x 20 | 17.0 | 17.5 | 10.0 | 10.0 | 7.0 | UNF |
| 466950 | 3⁄8" x 24 | 19.0 | 17.5 | 10.0 | 13.0 | 10.0 | UNF |
| 466951 | 9⁄16" x 18 | 20.5 | 17.5 | 10.0 | 13.0 | 10.0 | UNF |
| 466952 | 5⁄8" x 18 | 22.0 | 17.5 | 10.0 | 15.0 | 12.0 | UNF |
| 466953 | 3⁄4" x 16 | 26.0 | 17.5 | 10.0 | 19.0 | 16.0 | UNF |
| 466954 | 7⁄8" x 14 | 28.5 | 19.5 | 12.0 | 21.0 | 18.0 | UNF |
| 466955 | 1” x 14 | 31.5 | 19.5 | 12.0 | 24.0 | 21.0 | UNF |
| 466956 | 1 1⁄16" x 12 | 33.0 | 19.5 | 12.0 | 24.0 | 21.0 | UNF |
| 466958 | 1 5⁄16" x 12 | 40.0 | 22.5 | 15.0 | 30.0 | 27.0 | UNF |
| 466959 | 1 5⁄8" x 12 | 47.5 | 22.5 | 15.0 | 36.0 | 33.0 | UNF |
| 466960 | 1 7⁄8" x 12 | 54.0 | 22.5 | 15.0 | 36.0 | 33.0 | UNF |
| 466973 | M12 x 1 | 17.0 | 16.5 | 9.0 | 10.0 | 7.0 | Métrique |
| 466974 | M10 x 1.5 | 14.5 | 16.5 | 9.0 | 9.0 | 6.0 | Métrique |
| 466975 | M24 x 1.5 | 30.0 | 17.5 | 10.0 | 24.0 | 21.0 | Métrique |
| 466976 | M26 x 1.5 | 32.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466977 | M27 x 1.5 | 33.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466978 | M28 x 1.5 | 34.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466979 | M30 x 1.5 | 38.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466980 | M32 x 1.5 | 40.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466981 | M36 x 1.5 | 45.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466982 | M38 x 1.5 | 48.0 | 20.5 | 12.0 | 24.0 | 21.0 | Métrique |
| 466983 | M45 x 1.5 | 52.0 | 21.5 | 12.0 | 30.0 | 27.0 | Métrique |
| 466985 | M27 x 2 | 33.0 | 22.0 | 13.5 | 24.0 | 21.0 | Métrique |
| 466986 | M30 x 2 | 38.0 | 22.0 | 13.5 | 24.0 | 21.0 | Métrique |
| 466987 | M33 x 2 | 40.0 | 22.0 | 13.5 | 24.0 | 21.0 | Métrique |
| 466988 | M36 x 2 | 45.0 | 22.0 | 13.5 | 24.0 | 21.0 | Métrique |
| 466989 | M42 x 2 | 50.0 | 22.0 | 13.5 | 30.0 | 27.0 | Métrique |
| 466990 | M45 x 2 | 52.0 | 22.0 | 13.5 | 30.0 | 27.0 | Métrique |
| 466991 | M48 x 2 | 55.0 | 23.0 | 13.5 | 30.0 | 27.0 | Métrique |
| 466992 | M52 x 2 | 60.0 | 23.0 | 13.5 | 30.0 | 27.0 | Métrique |
| 466993 | 5⁄8" x 14 | 29.5 | 19.5 | 12.0 | 22.0 | 19.0 | BSP |
| 466994 | 7⁄8" x 14 | 37.0 | 19.5 | 12.0 | 27.0 | 24.0 | BSP |
| 466995 | 1 1⁄2" x 11 | 56.0 | 24.0 | 15.0 | 41.0 | 37.0 | BSP |
| 466997 | 2” x 11 | 68.0 | 24.0 | 15.0 | 55.0 | 51.0 | BSP |
