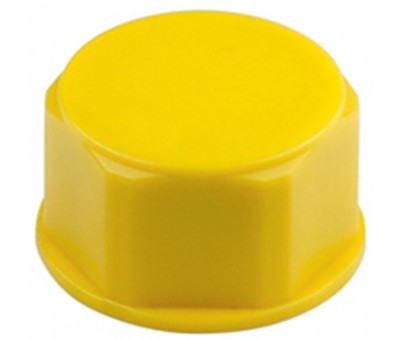

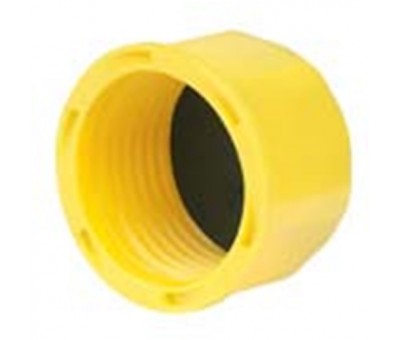

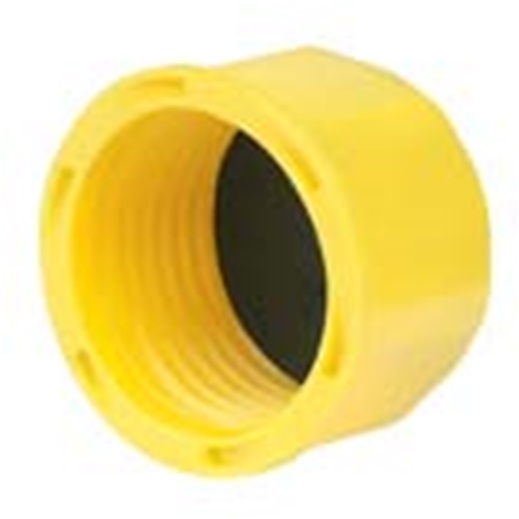

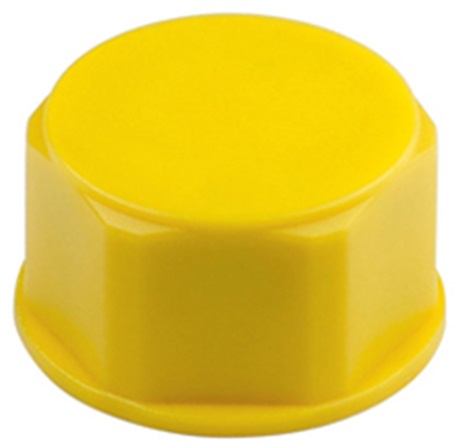

Le capes filetées d'étanchéité SR 1126 est en PEHD jaune, une matière robuste permettant de réduire les risques de déchirure. Elle est munie d'un joint en caoutchouc néoprène limitant les risques de fuite.
Pour mettre la cape plastique en place, le serrage manuel recommandé. Le capuchon est néanmoins muni d'une empreinte hexagonale, permettant le montage avec un outil à faible couple de serrage.
Caractéristiques
| Part No. | Taraudage | D (mm) | H (mm) | h (mm) | SW1 (mm) | SW2 (mm) | Type |
| 467033 | M8 x 1 | 12.0 | 13.0 | 11.0 | 10.0 | 11.0 | Métrique |
| 467034 | M10 x 1 | 14.2 | 13.0 | 11.0 | 12.0 | 13.2 | Métrique |
| 467035 | M12 x 1 | 16.5 | 13.0 | 11.0 | 14.0 | 15.4 | Métrique |
| 467036 | M12 x 1.5 | 16.5 | 15.0 | 13.0 | 14.0 | 15.4 | Métrique |
| 467037 | M14 x 1.5 | 18.5 | 15.0 | 13.0 | 16.0 | 17.5 | Métrique |
| 467038 | M16 x 1.5 | 21.0 | 15.0 | 13.0 | 18.0 | 19.7 | Métrique |
| 467039 | M18 x 1.5 | 23.0 | 15.0 | 13.0 | 20.0 | 21.9 | Métrique |
| 467040 | M20 x 1.5 | 25.0 | 15.0 | 13.0 | 22.0 | 24.1 | Métrique |
| 467041 | M22 x 1.5 | 27.5 | 15.0 | 13.0 | 24.0 | 26.3 | Métrique |
| 467042 | M24 x 1.5 | 30.0 | 15.0 | 13.0 | 26.0 | 28.5 | Métrique |
| 467043 | M25 x 1.5 | 31.0 | 15.0 | 13.0 | 27.0 | 29.6 | Métrique |
| 467044 | M26 x 1.5 | 32.0 | 15.0 | 13.0 | 28.0 | 30.7 | Métrique |
| 467045 | M28 x 1.5 | 34.0 | 15.0 | 13.0 | 30.0 | 32.9 | Métrique |
| 467046 | M30 x 1.5 | 36.5 | 15.0 | 13.0 | 32.0 | 35.1 | Métrique |
| 467047 | M30 x 2 | 36.5 | 17.0 | 15.0 | 32.0 | 35.1 | Métrique |
| 467048 | M36 x 1.5 | 44.5 | 16.0 | 14.0 | 39.0 | 42.8 | Métrique |
| 467049 | M36 x 2 | 44.5 | 18.0 | 16.0 | 39.0 | 42.8 | Métrique |
| 467050 | M42 x 2 | 51.0 | 18.5 | 16.0 | 45.0 | 49.4 | Métrique |
| 467051 | M45 x 1.5 | 54.5 | 16.5 | 14.0 | 48.0 | 52.6 | Métrique |
| 467052 | M45 x 2 | 54.5 | 18.5 | 16.0 | 48.0 | 52.6 | Métrique |
| 467053 | M52 x 2 | 62.0 | 18.5 | 16.0 | 55.0 | 60.3 | Métrique |
| 467054 | 1⁄4" x 28 | 10.0 | 13.5 | 11.5 | 8.0 | 8.8 | UNF |
| 467055 | 3⁄8" x 24 | 13.0 | 14.5 | 12.5 | 11.0 | 12.1 | UNF |
| 467056 | 7⁄16" x 24 | 15.5 | 14.5 | 12.5 | 13.0 | 14.3 | UNF |
| 467057 | 7⁄16" x 20 | 15.5 | 15.0 | 13.0 | 13.0 | 14.3 | UNF |
| 467058 | 1⁄2" x 20 | 17.5 | 15.0 | 13.0 | 15.0 | 16.5 | UNF |
| 467059 | 9⁄16" x 18 | 18.5 | 15.5 | 13.5 | 16.0 | 17.5 | UNF |
| 467060 | 5⁄8" x 18 | 21.0 | 15.5 | 13.5 | 18.0 | 19.7 | UNF |
| 467061 | 3⁄4" x 16 | 24.0 | 16.5 | 14.5 | 21.0 | 23.0 | UNF |
| 467062 | 13⁄16" x 16 | 26.5 | 16.5 | 14.5 | 23.0 | 25.2 | UNF |
| 467063 | 7⁄8" x 18 | 27.5 | 15.5 | 13.5 | 24.0 | 26.3 | UNF |
| 467064 | 7⁄8" x 14 | 27.5 | 17.5 | 15.5 | 24.0 | 26.3 | UNF |
| 467065 | 1” x 14 | 31.0 | 17.5 | 15.5 | 27.0 | 29.6 | UNF |
| 467066 | 11⁄16" x 12 | 34.5 | 18.5 | 16.5 | 30.0 | 32.9 | UNF |
| 467067 | 13⁄16" x 12 | 36.5 | 18.5 | 16.5 | 32.0 | 35.1 | UNF |
| 467068 | 15⁄16" x 12 | 41.0 | 18.5 | 16.5 | 36.0 | 39.5 | UNF |
| 467069 | 13⁄8" x 12 | 43.0 | 18.5 | 16.5 | 38.0 | 41.7 | UNF |
| 467070 | 17⁄16" x 12 | 45.5 | 18.5 | 16.5 | 40.0 | 43.9 | UNF |
| 467071 | 15⁄8" x 12 | 51.0 | 19.0 | 16.5 | 45.0 | 49.4 | UNF |
| 467072 | 13⁄4" x 16 | 54.5 | 17.0 | 14.5 | 48.0 | 52.6 | UNF |
| 467073 | 17⁄8" x 12 | 59.0 | 19.0 | 16.5 | 52.0 | 57.0 | UNF |
| 467074 | 1⁄8" x 28 | 14.0 | 13.0 | 11.0 | 12.0 | 13.2 | BSP |
| 467075 | 1⁄4" x 19 | 17.5 | 15.0 | 13.0 | 15.0 | 16.5 | BSP |
| 467076 | 3⁄8" x 19 | 22.0 | 15.0 | 13.0 | 19.0 | 20.8 | BSP |
| 467077 | 1⁄2" x 14 | 25.0 | 17.0 | 15.0 | 22.0 | 24.1 | BSP |
| 467078 | 5⁄8" x 14 | 29.0 | 17.0 | 15.0 | 25.0 | 27.4 | BSP |
| 467079 | 3⁄4" x 14 | 32.0 | 17.0 | 15.0 | 28.0 | 30.7 | BSP |
| 467080 | 7⁄8" x 14 | 36.0 | 17.0 | 15.0 | 32.0 | 35.1 | BSP |
| 467081 | 1” x 11 | 41.0 | 19.0 | 17.0 | 36.0 | 39.5 | BSP |
| 467082 | 11⁄4" x 11 | 51.0 | 19.0 | 17.0 | 45.0 | 49.4 | BSP |
| 467083 | 11⁄2" x 11 | 56.0 | 19.5 | 17.0 | 50.0 | 54.8 | BSP |
| 467084 | 2” x 11 | 71.0 | 19.5 | 17.0 | 63.0 | 69.1 | BSP |
| 467085 | 21⁄4" x 11 | 80.0 | 19.5 | 17.0 | 70.0 | 76.8 | BSP |
| 467086 | 21⁄2" x 11 | 90.0 | 19.5 | 17.0 | 80.0 | 87.7 | BSP |
