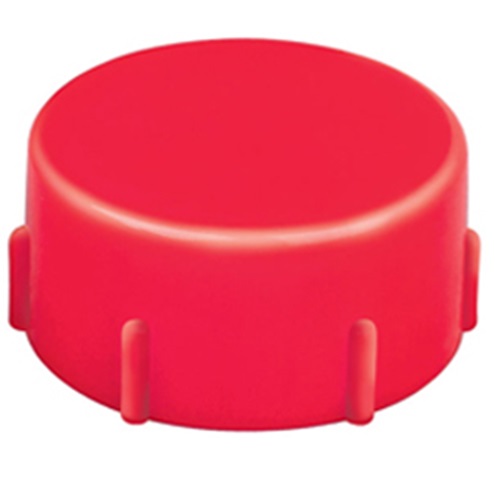

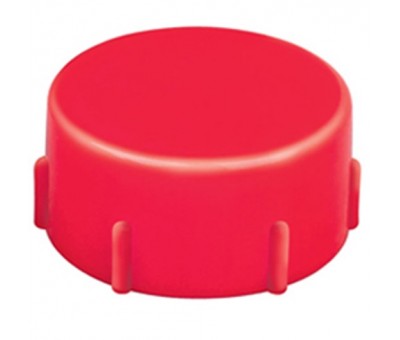

Les capes filetées SR 1018 sont des protections efficaces utilisées dans l'industrie automobile, la construction mécanique et et hydraulique. Réalisée en polyéthylène basse densité rouge, cette cape plastique protège les composants filetés de la poussière, de l'humidité et contre les chocs durant leur production, leur stockage et leur transport.
Caractéristiques
| Part No. | Taille de filetage | D (mm) | H (mm) | h (mm) | Type |
| 10104 | 3⁄8" x 19 | 18.7 | 11.3 | 7.4 | BSP/Gas |
| 10151 | 1 5⁄16" x 12 | 36.4 | 22.2 | 14.5 | UNF/JIC |
| 10163 | 1 3⁄16" x 12 | 32.7 | 19.1 | 13.0 | UNF/JIC |
| 10167 | 11⁄4" x 11 | 44.4 | 19.8 | 13.0 | BSP/Gas |
| 10185 | 17⁄16" x 12 | 38.9 | 21.7 | 15.2 | UNF/JIC |
| 10198 | 1⁄2" x 14 | 23.2 | 13.5 | 7.0 | BSP/Gas |
| 10204 | 1” x 11 | 36.0 | 19.0 | 14.5 | BSP/Gas |
| 10205 | 3⁄4" x 14 | 29.4 | 17.7 | 11.2 | BSP/Gas |
| 10251 | 3⁄8" x 24 | 11.0 | 8.3 | 4.0 | UNF/JIC |
| 10332 | 7⁄16" x 20 | 13.3 | 12.9 | 8.0 | UNF/JIC |
| 10392 | 1⁄8" x 28 | 11.8 | 12.0 | 6.5 | BSP/Gas |
| 10432 | 11⁄2" x 11 | 50.3 | 20.5 | 14.0 | BSP/Gas |
| 10528 | 1⁄2" x 20 | 14.5 | 13.5 | 9.5 | UNF/JIC |
| 10559 | 1⁄4" x 19 | 14.8 | 11.0 | 8.0 | BSP/Gas |
| 10653 | 5⁄8" x 18 | 18.2 | 15.6 | 7.5 | UNF/JIC |
| 10685 | 1 1⁄16" x 12 | 29.4 | 19.0 | 11.0 | UNF/JIC |
| 10968 | 2” x 11 | 61.9 | 21.0 | 15.0 | BSP/Gas |
| 10970 | 7⁄8" x 14 | 32.4 | 19.5 | 12.5 | BSP/Gas |
| 11041 | 9⁄16" x 18 | 16.5 | 13.5 | 9.5 | UNF/JIC |
| 11053 | 15⁄8" x 12 | 44.8 | 22.0 | 14.0 | UNF/JIC |
| 11089 | 7⁄8" x 14 | 24.9 | 20.2 | 14.0 | UNF/JIC |
| 11157 | 5⁄8" x 14 | 25.4 | 15.7 | 10.0 | BSP/Gas |
| 11804 | 17⁄8" x 12 | 50.3 | 25.0 | 15.0 | UNF/JIC |
| 12075 | 7⁄8" x 18 | 25.3 | 20.0 | 14.0 | UNF/JIC |
| 12100 | M8 x 1 | 9.9 | 10.0 | 7.0 | Métrique |
| 12101 | M10 x 1 | 11.9 | 10.0 | 7.5 | Métrique |
| 12102 | M12 x 1 | 13.8 | 12.0 | 9.5 | Métrique |
| 12103 | M12 x 1.5 | 14.0 | 12.0 | 9.5 | Métrique |
| 12104 | M14 x 1.5 | 15.9 | 12.0 | 9.5 | Métrique |
| 12105 | M16 x 1.5 | 17.9 | 12.0 | 9.5 | Métrique |
| 12106 | M18 x 1.5 | 19.7 | 14.0 | 9.5 | Métrique |
| 12107 | M20 x 1.5 | 21.9 | 14.0 | 9.5 | Métrique |
| 12108 | M22 x 1.5 | 24.3 | 13.8 | 11.5 | Métrique |
| 12109 | M24 x 1.5 | 26.2 | 14.0 | 11.5 | Métrique |
| 12110 | M25 x 1.5 | 27.2 | 14.0 | 11.5 | Métrique |
| 12111 | M26 x 1.5 | 28.3 | 14.0 | 11.5 | Métrique |
| 12122 | M30 x 2 | 34.0 | 14.0 | 11.5 | Métrique |
| 12123 | M36 x 2 | 38.8 | 16.0 | 13.5 | Métrique |
| 12124 | M42 x 2 | 44.5 | 16.0 | 13.5 | Métrique |
| 12126 | M52 x 2 | 54.7 | 16.0 | 13.5 | Métrique |
| 12650 | M14 x 1.5 | 16.0 | 20.6 | 9.2 | Métrique |
| 12651 | M16 x 1.5 | 18.0 | 21.0 | 9.0 | Métrique |
| 12652 | 7⁄16" x 24 | 13.3 | 13.7 | 7.8 | UNF/JIC |
| 12654 | 13⁄8" x 12 | 37.4 | 24.5 | 10.5 | UNF/JIC |
| 12825 | 13⁄16" x 16 | 23.3 | 15.3 | 9.3 | UNF/JIC |
| 12826 | 1” x 14 | 27.6 | 17.2 | 12.0 | UNF/JIC |
| 12845 | M22 x 1.5 | 24.4 | 24.5 | 17.5 | Métrique |
| 12847 | 3⁄4" x 16 | 21.7 | 13.8 | 9.5 | UNF/JIC |
| 12905 | 2 1⁄2" x 11 | 77.9 | 27.6 | 19.0 | BSP/Gas |
| 12967 | M28 x 1.5 | 32.0 | 14.0 | 12.4 | Métrique |
